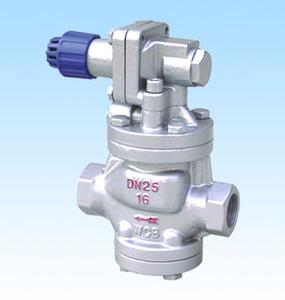

進口高靈敏度蒸汽減壓閥（高精度減壓閥）
一、進口高靈敏度蒸汽減壓閥（高精度減壓閥） 產品概述
品牌：美國歐可OKE
進口高靈敏度蒸汽減壓閥，High sensitivity steam valve reducing valve，也叫進口高精度減壓閥，主要用于蒸汽管路，適用于進口壓力變化大，流量變化大的蒸汽管路。通過調節調節彈簧壓力設定出口壓力、利用膜片傳感出口壓力變化,通過導閥啟閉驅動活塞調節主閥節流部位過流面積的大小，實現減壓穩壓功能，進口高靈敏度蒸汽減壓閥（高精度減壓閥）在普通減壓閥加大了活塞面積，改變了節流結構，改變了密封形式，改進了導閥結構和調節彈簧形式，能更加靈敏有效的感應閥后蒸汽壓力，有效的高精度的對閥后壓力進行減壓穩壓。
進口高靈敏度蒸汽減壓閥（高精度減壓閥）特征：
1、提高了對出口壓力變化的傳感效能，提高了靈敏度，大大降低了因上游壓力變化，流量變化等因素引起的壓力偏差。
2、改善了流線分布，降低了噪聲。
3、改進了密封面結構，延長了密封面壽命。
二、進口高靈敏度蒸汽減壓閥（高精度減壓閥） 技術參數
進口高靈敏度蒸汽減壓閥（高精度減壓閥）公稱壓力(Mpa) 1.0 1.6
殼體試驗壓力(Mpa)* 1.5 2.4
最高進口壓力(Mpa) 1.0 1.6
密封試驗壓力(Mpa) 1.0 1.6
出口壓力范圍(Mpa) 0.04-0.6 0.04-1.0
口徑 DN15-80
溫度 0-450℃
最小壓差（MPa） 0.15
控制精度誤差 ≤3%
*：殼體試驗不包括膜片、頂蓋
三、進口高靈敏度蒸汽減壓閥（高精度減壓閥） 零部件材料
零件名稱 零件選用材料
閥體、閥蓋、底蓋 WCB 不銹鋼304、316
閥座、閥瓣 2Cr13
活塞環 對位聚苯
膜片 PH15-7Mo
缸套、活塞 鋁鐵青銅
導閥座、導閥瓣 2Cr13
主閥彈簧 50CrVA
調節彈簧 60Si2Mn
導調主彈簧 50CrVA
四、美國歐可OKE進口高靈敏度蒸汽減壓閥業績
北京碧水源凈水科技有限公司,三諾生物,國瓷材料,冠昊生物中國石油化工集團公司中國港灣建設（集團）總公司中國中煤能源集團公司中國大唐集團公司邯鄲鋼鐵集團有限責任公司上海紡織控股（集團）公司，浙江富興電力燃料有限公司,廣州明珠電力（集團）股份有限公司，成都熱電廠內蒙古蒙電華能熱電股份有限公司，山東菏澤鍋爐（集團）廠有限公司，吉祥化工設備公司，四川省宜賓五糧液集團有限公司，杭州娃哈哈集團有限公司，維維集團統一企業中國公司，內蒙古蒙牛乳業集團股份有限公司
五、進口高靈敏度蒸汽減壓閥安裝說明書
1、蒸汽減壓穩壓閥安裝前必須對管路系統進行沖洗清理。以防焊渣，氧化皮等贓物流入閥內，影響閥門正常工作。
2、蒸汽減壓穩壓閥應安裝在便于操作和維修的地方，并且必須直立安裝在水平管道上，應注意使管路中介質的流向與閥體上箭頭所示方向一致，切勿反裝。
3、蒸汽減壓穩壓閥在安裝使用時，應把旁通管道的截止閥打開，排除管路中的冷凝水和汽水的混合物，以防減壓閥開啟時產生水圾現象損壞減壓閥，當無異�，F(xiàn)象后，按順時針方向緩慢旋轉調節螺釘，將出口壓力調至所需的壓力(以閥后表壓為準)，調整后，將鎖緊螺母背緊，擰上防護罩。
4、蒸汽減壓穩壓閥前應安裝過濾器，以防介質中的雜物進入減壓閥，影響其性能。
5、安裝的減壓閥前后應有一段直管，閥前的直管長度約為600毫米，閥后的直管長度約為1000毫米。
6、蒸汽減壓穩壓閥要求進出口壓差必須≥0.2Mpa。
7、蒸汽減壓穩壓閥的管網必須裝安全閥，以防減壓閥失效壓力升高造成系統或者設備的破壞。
Imported high sensitivity steam pressure reducing valve (high precision pressure reducing valve)
1. Imported high-sensitivity steam pressure reducing valve (high-precision pressure reducing valve) Product Overview
Brand: US Ouke OKE
High sensitivity steam valve reducing valve, also called high-precision steam valve reducing valve, is mainly used for steam pipelines. It is suitable for steam pipelines with large inlet pressure changes and large flow changes. By adjusting the adjustment spring pressure to set the outlet pressure, using the diaphragm to sense the outlet pressure change, the pilot valve is opened and closed by the pilot valve to adjust the overflow area of ??the throttle portion of the main valve to achieve the decompression and pressure reduction function, and the imported high sensitivity steam is reduced. The pressure valve (high-precision pressure reducing valve) increases the piston area in the ordinary pressure reducing valve, changes the throttling structure, changes the sealing form, improves the pilot valve structure and adjusts the spring form, and can be more sensitive and effective after the induction valve steam Pressure, effective high-precision pressure reduction of the post-valve pressure.
Imported high sensitivity steam pressure reducing valve (high precision pressure reducing valve) features:
1. Improve the sensing efficiency of the change of outlet pressure, improve the sensitivity, and greatly reduce the pressure deviation caused by the upstream pressure change, flow change and other factors.
2. Improved streamline distribution and reduced noise.
3. The sealing surface structure is improved and the life of the sealing surface is prolonged.
Second, the import of high-sensitivity steam pressure reducing valve (high-precision pressure reducing valve) technical parameters
Imported high sensitivity steam pressure reducing valve (high precision pressure reducing valve) nominal pressure (Mpa) 1.0 1.6
Shell test pressure (Mpa)* 1.5 2.4
Maximum import pressure (Mpa) 1.0 1.6
Seal test pressure (Mpa) 1.0 1.6
Outlet pressure range (Mpa) 0.04-0.6 0.04-1.0
Caliber DN15-80
Temperature 0-450 ° C
Minimum differential pressure (MPa) 0.15
Control accuracy error ≤3%
*: Shell test does not include diaphragm, top cover
Third, imported high-sensitivity steam pressure reducing valve (high-precision pressure reducing valve)
Part name Part selection material
Body, bonnet, bottom cover WCB stainless steel 304, 316
Seat, disc 2Cr13
Piston ring
Diaphragm PH15-7Mo
Cylinder liner, piston, aluminum iron bronze
Guide seat, pilot valve 2Cr13
Main valve spring 50CrVA
Adjustment spring 60Si2Mn
Guide main spring 50CrVA
Fourth, the United States Europe can OKE import high sensitivity steam pressure reducing valve performance
Beijing Bishuiyuan Water Purification Technology Co., Ltd., Sannuo Bio, China Ceramics Materials, Guanxi Bio-China Petrochemical Corporation China Harbour Construction (Group) Corporation China China Coal Energy Group Corporation China Datang Corporation Corporation Handan Iron and Steel Group Co., Ltd. Shanghai Textile Holding (Group) Company, Zhejiang Fuxing Electric Fuel Co., Ltd., Guangzhou Mingzhu Electric Power (Group) Co., Ltd., Chengdu Thermal Power Plant Inner Mongolia Mengdian Huaneng Thermal Power Co., Ltd., Shandong Heze Boiler (Group) Factory Co., Ltd., Jixiang Chemical Equipment Co., Ltd. , Sichuan Yibin Wuliangye Group Co., Ltd., Hangzhou Wahaha Group Co., Ltd., Weiwei Group Uniform Enterprise China, Inner Mongolia Mengniu Dairy Group Co., Ltd.
Five, import high sensitivity steam pressure reducing valve installation instructions
1. The steam pressure relief valve must be flushed and cleaned before installation. In order to prevent the welding slag, oxide scale and other sputum from flowing into the valve, affecting the normal operation of the valve.
2. The steam pressure reducing regulator should be installed in a place convenient for operation and maintenance, and must be installed upright on the horizontal pipe. It should be noted that the flow direction of the medium in the pipeline is consistent with the direction indicated by the arrow on the valve body. .
3. When the steam pressure reducing regulator valve is installed and used, the shut-off valve of the bypass pipe should be opened to eliminate the mixture of condensed water and soda water in the pipeline to prevent the garbage valve from being damaged when the pressure reducing valve is opened. When there is no abnormality, slowly rotate the adjusting screw clockwise to adjust the outlet pressure to the required pressure (based on the valve back pressure). After adjustment, tighten the lock nut and tighten the protective cover.
4. A filter should be installed before the steam pressure reducing regulator to prevent debris in the medium from entering the pressure reducing valve and affecting its performance.
5. There should be a straight pipe before and after the installed pressure reducing valve. The length of the straight pipe in front of the valve is about 600 mm, and the length of the straight pipe behind the valve is about 1000 mm.
6. The steam pressure reducing regulator requires the inlet and outlet pressure difference to be ≥0.2Mpa.
7. The pipe network of the steam pressure reducing regulator valve must be equipped with a safety valve to prevent damage to the system or equipment caused by the failure pressure of the pressure reducing valve.
|
